LOCKSLING ® MUGEN ®

WE HAVE PATENT TECHNIQUES

WITH ONLY ONE DEVELOPPING POWER

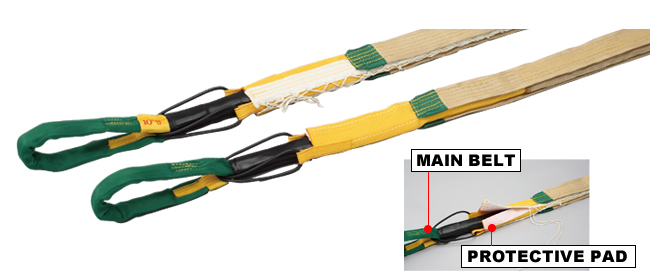

1 MAIN BELT

IN ORDER TO PROTECT LOADING GOODS AND BELT.
MAIN BELT IS FINISHED TO KEEP MODERATE SLIP/WE ARE USING ARAMIDO FIBER AS WARP AND WE ARE ALSO.
USING FLIXIBLE FIBER AS WOOF SO OUR BELT HAS STRENGTH AND SOFT.
2 SAFETY FUSE BELT

EVEN IF MAIN BELT BREAKS, THIS SAFETY FUSE BELT HELP AND BACK UP THE LOADING GOODS.
THIS SAFETY FUSE IS THE FIRST USING IN THE WORLD(M-1S/M-1W ONLY )
3 EASY OPERATION

YOU CAN HOOK IT AT HIGH POSITION EASILY AND SAFETY IT HAS BEEN MADE SOME HARDNESS TO HOOK EYE.
IN ADDITION TO HOOK IT WITHOUT FAIL AND WORK IT EFFICIENTLY, TOP OF EYE HAS BEEN MADE MORE SOFT BY SPECIAL TECHNIQUE
4 LINKAGE RUBBER

TO PROTECT GAP OF PROTECTIVE PAD, AND AFTER LIFTING DOWN, BY RUBBER SPRING POWER,PROTECTIVE PAD WILL BE RETURN TO CENTRE.
5 PROTECTIVE PAD

DECREASING MAIN BELT DAMAGE. THIS PROTECIVE PAD PROTECT INFLUENCE OF ULTRAVIOLET RAYS. IN ADDITION,

TECHNORA USING REINFORCEMENT BELT CAN GUADE WEAK POINT



Page Top

LOCKSLING ® MUGEN ® 　PATENT ONE SIDE USING M-1S/M-1W

TECHNORA HIGH TENACITY ARAMID FIBER

ONE SIDE USING

MAIN BELT & SAFETY FUSE BELT

YOU CAN SERLECT ;
STANDARD PROTECTION PAD ID MADE BY SINGLE PIECE OF ARAMIDO FIBER AND THIS LIGHT WEIGHT OR DUBLE ARAMIDO FIBER AND THIS IS MORE DURABILITY.

●WORKING LOAD FOR WEBBING SLING

  STRAIGHT SUSPENSION BASKET SUSPENSION
SUSPENSION METHOD
SUSPENTION ANGKLE α   α=0° α≦30° 30°＜α≦45° 45°＜α≦60°
Width Breaking load Mode factor M 1 2 1.92 1.84 1.72
Working load limit
50 400min. 5.0 5.0max. 10 9.6 9.2 8.6
75 600 7.5 7.5 15 14.4 13.8 12.9
100 800 10 10 20 19.2 18.4 17.2
120 1000 12.5 12.5 25 24 23 21.5

※CAUSION; Never use the LOCKSLING MUGEN for cholk suspention and should never be uesd for this type of work.



●COMPARING WITH WIRE SLING

WIRESLING W/RUBBER

Working load limit

（Basket suspention)

Weight
9ｔ 18㎏
12ｔ 26㎏
16ｔ 29㎏
20ｔ 32kg
LOCKSLING MUGEN

Working load limit

（Basket suspention)

Weight
10ｔ 7㎏
15ｔ 9㎏
20ｔ 12㎏
25ｔ 14kg



●STANDARD SPECIFICATIONS　（M-1S / M-1W）

Working load limit

Belt width
（W）mm		 Eye length
（A）mm		 Eye width
（B）mm		 Total length
（L）m		 Eye color
10ｔ 50 400 65 3 min. Light blue
15ｔ 75 450 65 3.5 min. Deep Blue
20ｔ 100 500 70 4 min. Red
25ｔ 120 550 75 Green
