QUICHER PRECISION SCROW FEEDER

QUICHER ALONE CAN COPE WITH VARIOUS TYPES OF SCREWS.
AUTOMATIC SCROW FEEDER WITH THE WORLD'S FIRST REPLACEBLE RAIL.

WITH QUICHER,TI IS EASY TO REARRANGE THE PRODUCTION LINE TO MEET THE CHANGE OF SCREW DIAMETER AND FROM. IT ALSO HELPS YOU TO IMPROVE THE QUALITY CONTROL AND PRODECTIVITY.

NS-SERIES

NE-Series
INTRODUCING NEW BIT GUIDE

THIS NEW BIT GUIDE LEADS THE SCREWDRIVER BIT TO THE CWNTER OF THE SCREW HEAD. IT WILL IMPROVE PRODUCTIVITY.

WITH A SLIDING ADIUSTER, THE BIT SIZE CAN BE CHANGED.

NS-SERISE

NE-Series

IT CARRIES SCREWS SMOOTHLY.

INCREASED DURABILITY AND LONG LIFE IS ASSURED.

<MODIFICATION ON SCREW FEEDING SECTION>

THE LOAD ON THE MOTOR IS DECREASED AND EFFICIENCY OF THE SCREW ALIGNMENT IS INCREASED.



<ADJUSTMENT OF RAIL ANGLE>

THE TILTING ANGLE OF THE RAIL IS ADJUSTABLE ACCORDING TO THE SCREW SIZE TO BE USED.



<ADJUSTMENT OF AMPLITUDE>

THE AMPLITUDE IS ADJUSTABLE TO SUIT THE SCREW SIZE TO BE USED.



<WITHOUT ROLLING>

THE ROLLING OF THE RAIL IS ELIMINATED AND THE SCREWS ARE CARRIED SMOOTHLY.

NSB RAIL

ONE QUICHER CAN COPE WITH EIGHT DIFFERENT SIZES OF SCREWS.

THE NS SERIES COPE WITH EIGHT DIFFERENT SIZES OF SCREWS JUST BY REPLACING THE RAIL (8 SIZES FROM M1.0 TO M3.0)

EXAMPLE OF SCREWS WHICH CAN BE SUPPLIED

OTHER CAPABILITIES

IT IS COMPACT AND SPACE SAVING.

WITH INSTALLATION OF NEJIKURA, THE LARGE STOCK OF SCREWS CAN BE LOADES.

IT IS EQUIPPED WITH AN OVERLOAD BACKSTOP PROTECTION CIRCUIT.

EXCHANGE OF NSB RAIL

EASY TO REPLACE RAIL.

NBS

IT IS EASY TO REPLACE THE RAIL TO MEET THE CHANGE OF SCREWS.

【NS SERISE】

MODEL NAME & NUMBER NSB NSR
SIZE(mm) 123(W)×181(D)×145(H) 123(W)×181(D)×145(H)
WEIGHT(INCLUDING RAIL) APPROX. 2.92Kg APPROX. 3.01Kg
POWER SOUCE AC 100V, DC 12V 500mA, AC ADAPTER
PROTECTION & RECOVERY CIRCUIT MOTOR OVERLOAD STOP.PROTECTION CIRCUIT FOR REVERSE POWER CONNECTION
APPLICABLE SCREW FROM M1.0 TO M3.0 (TO THE TABLE FOR APPLICABLE RAILS)

APPLICABLE SCREW LENGTH

(UNDER HEAD)

UP TO 20mm
SCOOPING CHAMBER CAPACITY 80cc

ACCESSORIES

(IN PACKAGE)

INSTRUCTION MANUAL

ALLEN WRENCH(L SHAPED,2mm)

AC ADAPTER

PASSAGE WINDOW(EACH OF TWO TYPES)

0.35mm GAUGE PLATE(TO ADJUST HOLDING PLATE)

INSTRUCTION MANUAL

ALLEN WRENCH(L SHAPED,2mm)

AC ADAPTER

PASSAGE WINDOW(EACH OF TYPES)





【NSB SERISE】

SCREW NOMINAL SIZE

M1.0 M1.2 M1.4 M1.7 M2.0 M2.3 M2.6 M3.0

APPLICABLE RAIL

SR10 SR12 SR14 SR17 SR20 SR23 SR26 SR30

【NSR SERISE】

SCREW NOMINAL SIZE

M1.0 M1.2 M1.4 M1.7 M2.0 M2.3 M2.6 M3.0

APPLICABLE RAIL

SRR10 SRR12 SRR14 SRR17 SRR20 SRR23 SRR26 SRR30

WHEN YOU PLACE AN ORDER, PLEASE SPECIFY THE TYPE NUMBEW OF THE APPLICABLE RAILL.

ONE ESCAPER COMES WITH THERAILL. NS SERIES CAN COPE WITH THE SCREW SIZE FROM M1.0 TO M3.0




Page Top

NJ SERIES

SE-200  Series
THE STANDARD SCREWDRIVER BIT ON THE MARKET CAN BE USED.

・THE SUCTION TYPE SCREWDRIVER.

・THE BIT TYPE SCREWDRIVER.

CAPABLE OF LOADING LARGE STOCK OF SCREWS
UP TO 150cc SCREWS CAN BE LOADED.
COPES WITH SPECIAL SCREWS

THE SCREW ASSEMBLED WITH WASHER OR SW CAN ALSO BE COPED.

IT HANDLES THE SCREW SIZES OF UP TO M5.0.

IT IS EQUIPPED WHIS AN OVERLOAD REVERSE PROTECTION CIRCUIT.

THE RAIL IS REPLACEABLE.

IT COPES WITH THE VARIOUS SIZES OF SCREWS.

MODEL NJ-23 HANDLES FOUR SIZES OF SCREWS.

※ REFER TABLE 1

<ANGLE ADJUSTMENT OF RAIL>

THE ANGLE OF INCLINATION DEGREE ADJUSTMENT OF THE RAIL IS POSSIBLE BY THE KIND OF SCREWS.





SE-200  Series
NJ TYPE NJ TYPE


【NJ SERIES】

MODEL NAME & NUMBER NSB NSR
SIZE(mm) 130(W)×215(D)×136(H) 130(W)×275(D)×136(H)
WEIGHT(INCLUDING RAIL) APPROX. 3.2Kg APPROX. 4.2Kg
POWER SOUCE AC 100V, DC 12V 500mA, AC ADAPTER
PROTECTION & RECOVERY CIRCUIT MOTOR OVERLOAD STOP.PROTECTION CIRCUIT FOR REVERSE POWER CONNECTION
APPLICABLE SCREW

NJ AND NJR SERISE

(TO THE TABLE FOR APPLICABLE SCREWS & RAIL FOR NJ SERIES)

APPLICABLE SCREW LENGTH

(UNDER HEAD)

UP TO 18mm
SCOOPING CHAMBER CAPACITY APPROX. 150cc

ACCESSORIES

(IN PACKAGE)

INSTRUCTION MANUAL

ALLEN WRENCH(L SHAPED,2mm)

AC ADAPTER

INSTRUCTION MANUAL

ALLEN WRENCH(L SHAPED,2mm)

AC ADAPTER

TYPE SCREW NOMINAL SIZE APPLICABLE RAIL
NJ-12 1.4mm R-14
1.7mm R-17
NJ-23 2.0mm R-20
2.3mm R-23
2.6mm R-26
3.0mm R-30
NJ-45 3.5mm R-35
4.0mm R-40
5.0mm R-50

WHEN YOU PLACE AN ORDER,PLEASE SPECIFY THE TYPE NUMBER OF THE APPLICABLE RAIL.



TYPE SCREW NOMINAL SIZE APPLICABLE RAIL
NJR-12 1.4mm RR-14
1.7mm RR-17
NJR-23 2.0mm RR-20
2.3mm RR-23
2.6mm RR-26
3.0mm RR-30
NJR-45 3.5mm RR-35
4.0mm RR-40
5.0mm RR-50

ONE ESCAPER COMES WITH THE RAIL.

Page Top

NEJIKURA

NEJIKURA
NEJIKURA FLOOR TYPE (SR-80,NJ80)

■ IT IS EASY TO INSTALL. JUST PLACE IT BESIDE QUICHER.

■ IT IS SMALL AND SPACE SAVING,BUT TAKES UP TO 800cc OF SCREW STOCK.

■ IT REQUIES NO VERTICAL SPACE.



ASENSOR DETRCTS THE AMOUNT OF SCREWS QUICHER AND NEJIKURA SUPPLIES OPTIMUM AMOUNT OF SXREWS AUTPMATICALLY.

THE WORKING TIME OF THE ROTOR (IMPELLER) CAN BE ADJUSTED BY A TIMER.

NEJIKURA NEJIKURANEJIKURA


【NEJIKURA SERIES】

MODEL NAME & NUMBER FLOOR TYPE NJ-80,SR-80 TOWER TYPE T-510
SIZE(mm)

NJ-80: 142(W)×191(D)×188(H)

SR-80: 142(W)×191(D)×189-198(H)

130(W)×171(D)×245(H)

WITH ADDITIONAL HOPPER: 295(H)

WEIGHT(INCLUDING RAIL) APPROX. 2.9Kg APPROX. 3.1Kg
POWER SOUCE AC 100V, DC 12V 500mA, AC ADAPTER
SCREW FEEDING AMOUNT VARIABLE TYPE
APPLICABLE SCREW

M2.0 TO M5.0

M1.0 TO M5.0

SCREW FEEDING SENSOR

PHOTOMETRY
HOPPER CAPACITY APPROX. 800cc

STANDERD HOPPER,APPROX. 400cc

/ ADDITIONAL HOPPER; 400cc

ACCESSORIES

(IN PACKAGE)

INSTRUCTION MANUAL

AC ADAPTER

INSTRUCTION MANUAL

SIGNAL CABLE AC ADAPTER


Page Top

SE-400 SERIES / MIDDLE SIZE HEAVY DUTY BASIC TYPE [ WIDTH :400mm]

SE-400 SERIES
FEATURES
THIS SERIES, BOASTING UNPRECEDENTED SUPERIOR SPESIFICATIONS IN 400mm WIDTH PRODUCTS, IS AVAILABLE IN VARIED MODELS.
SE-400 SERIES
APPLICATION AND PURPOSE
TRIPLE DUST COLLECTING ABILITY COMPAREDTO SE-300 SERIES CONTRIBUTES TO RESTRICTION OF DUST SCATTERING AND PREVENTION OF REATTACHMENT OD DUSTS. SERECT THE MOST SUITABLE PRODUCT FOR WORK SIZE AMONG VARIED MODELS.

Page Top

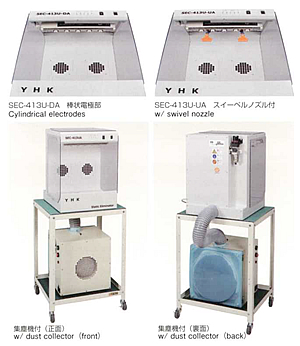

SEC-400 SERIES / MIDDLE SIZE HEAVY DUTY CYLINDRICAL ELECTRODES TYPE
[WIDTH : 400mm]

SEC-400 SERIES
FEATURES
THIS 400mm WIDTH SERIES, HEAVING LOW-FREQUENCY WAVE BAR IONIZER, CONTRIBUTES TO COMPLETE EFFECTIVENESS IN EVERY DETAIL.
SEC-400 SERIES
APPLICATION AND PURPOSE
THIS SERIES, DEVELOPED FOR MIDDLE-SIZE AND RELATIVELY WIDE WORKS, FEATURES SUPERIOR CAPABILITY OF DUST COLLECTION, RESTRICTION OF DUST SCATTERING, AND PREVENTION OF REATTACHMENT OF DUSTS.

Page Top

SE-600 SERIES / MIDDLE SIZE HEAVY DUTY BASIC TYPE [WIDTH : 600mm]

SE-600 SERIES
FEATURES
AMONG DESK TOP TYPE PRODUCTS, THIS UNPRECEDENTED LARGE-CAPACITY SERIES WIDTH 600mm WIDTH FEATURES SUPERIOR PERFORMANCE.
SE-600 SERIES
APPLICATION AND PURPOSE
THIS SERIES, DEVELOPED FOR LARGE WORKS, HAS FOUR DUST COLLECTING BLOWERS, AND FEATURES SUPERIOR CAPABILITY OF RESTRICTION OF DUST SCATTERING AND PREVENTION OF REATTACHMENT OF DUSTS.
SELECT THE MOST SUITBALE PRODUCT FOR WORK SIZE AMONG VARIED MODELS.

Page Top

SEC-600 SERIES / MIDDLE SIZE HEAVY DUTY CYLINDRICAL ELECTRODES TYPE
[WIDTH : 600mm]

SEC-400 SERIES
FEATURES

THIS SERIES OF 600mm WIDTH, HEAVING LOW-FREQUENCY WAVE BAR IONIZER, CONTRIBUTES TO COMPLETE EFFECTIVENESS IN EVERY DETAIL.

SEC-600 SERIES
APPLICATION AND PURPOSE
THIS SERIES, DEVELOPED FOR LARGE AND RELATIVELY WIDTH WORKS FEATURES SUPERIOR CAPABILITY OF DUST COLLECTION, RESTRICTION OF DUST SCATTERING, AND PREVENTION OF REATTACHMENT OF DUSTS.

Page Top

SEC-V6 SERIES / LARGE SIZE HIGH AIR VOLUME CYLINDRICAL ELECTRODES TYPE
[WIDTH : 600mm]

SEC-400 SERIES
FEATURES
THIS ENERGY-SAVING TYPE SERIES REALIZES HIGH AIR VOLUME AND STRONG DUST COLLECTIN WITHOUT USE OF COMPRESSOR AIR BY THE ADOPTION OF HIGH-PRESSURE BLOWER AND FALL NOZZLE, AS WELL AS COMPLETE CONTROL OF AIR VOLUME WITH INVERTER CONTROL.(TI YEARLY REDUCES CARBON DIOXIDE EMISSION AS MUSH AMOUNT AS THAT ABSORBED BY MORE THAN 3500 CEDARS.)
SEC-400 SERIES
APPLICATION AND PURPOSE
SUITABLE FOR APPLICATIONS RELATED TO MIDDLE-SIZE WORKS AND COMPLETE ELECTROSTATIC ELIMINATION AND DUST REMOVAL ARE REQUIRED.

Page Top

SEC-V9 SERIES / LARGE SIZE HIGH AIR VOLUME CYLINDRICAL ELECTRODES TYPE
[WIDTH : 900mm]

SEC-400 SERIES
FEATURES
THIS ENERGY-SAVING TYPE SERIES REALIZES HIGH AIR VOLUME AND STRONG DUST COLLECTION WITHOUT USE OF COMPRESSOR AIR BY THE ADOPTION OF HIGH-PRESSURE BLOWER ANF FALL NOZZLE, AS WELL AS COMPLETE CONTROL OF AIR VOLUME WITH INVERTER CONTROL.(IT YEARLY REDUCES CARBON DIOXIDE EMISSION AS MUCH AMOUNT AS THAT ABSORBED BY MORE THAN 4700 CEDARS.)
SEC-400 SERIES
APPLICATION AND PURPOSE
SUITABLE FOR APPLICATIONS RELATED TO LARGE WORKS AND COMPLETE ELECTROSTATIC ELIMINATIONAND DUST REMOVAL ARE REQUIRED.
